Bolts Hex Head Fully Threaded DIN933 Class8.8 Blue White Zinc Plated-1

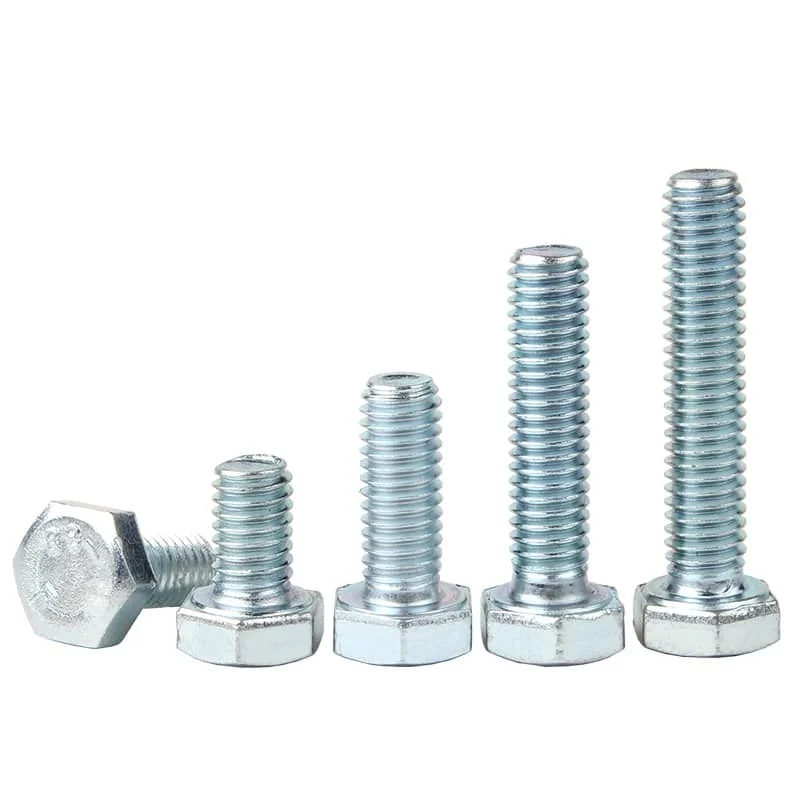

Bolts Hex Head Fully Threaded DIN933 Class8.8 Blue White Zinc Plated-2

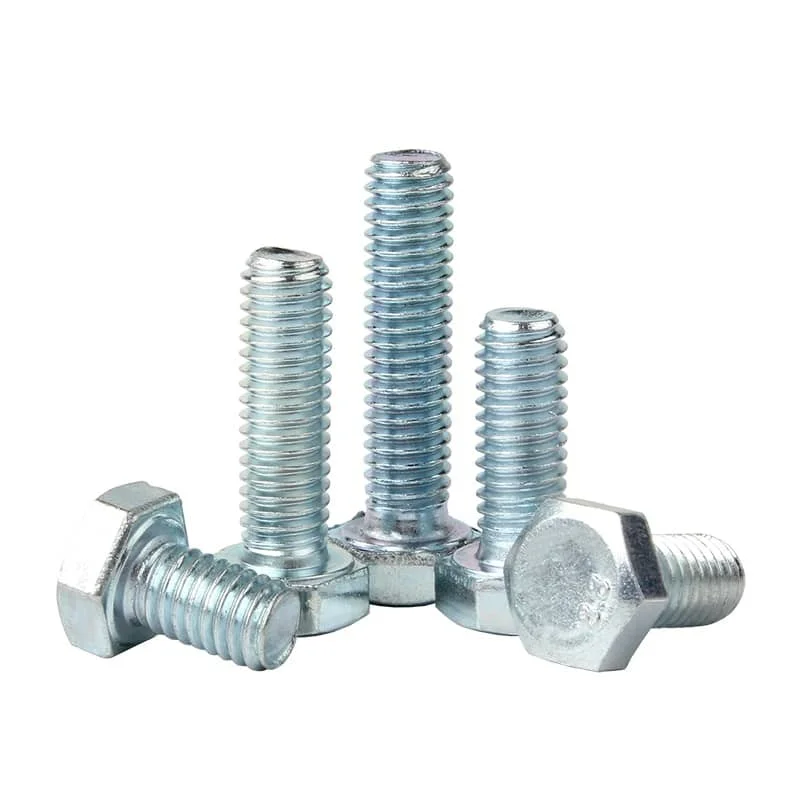

Bolts Hex Head Fully Threaded DIN933 Class8.8 Blue White Zinc Plated

SKU: BG0201527 Category: Tag:
Add to Quote

Description:

Product Name:

Hex Head Bolts

Specification:

DIN933

Material Grade:

35K(Carbon Steel)

Measurement:

Metric(MM)

Diameter Range:

M10, M12, M14

Length Range:

 12mm, 16mm,20mm, 22mm, 25mm, 30mm, 35mm, 40mm, 45mm,  50mm, 55mm, 60mm,  65mm, 70mm,  75mm,  80mm，

85mm, 90mm, 95mm, 100mm, 110mm, 120mm, 130mm

Surface Finish:

Blue White Zinc Plated

Color:

Blue

Place of Origin:

DongGuan, China

Quality Control:

100% inspection during production

Packaging:

Plastic bags/cartons

Sample:

Availbale

Customized:

Availbale

Screw Size Conversion Chart:

Screw Size

Diameter(mm)

Diameter(inch)

Nearest Fraction(inch)

#0

1.52

0.060

1/16

#1

1.85

0.073

5/64

#2

2.18

0.086

3/32

#3

2.51

0.099

7/64

#4

2.84

0.112

7/64

#5

3.18

0.125

1/8

#6

3.51

0.138

9/64

#8

4.17

0.164

5/32

#10

4.83

0.190

3/16

#12

5.49

0.216

7/32

#14

6.35

0.250

1/4

Drawing:

Bolts Hex Head Fully Threaded DIN933 Drawing

Data Sheet:

Thread Size

M1.6

M2

M2.5

M3

M3.5

M4

M5

M6

M7

M8

M10

M12

M14

M16

P

0.35

0.4

0.45

0.5

0.6

0.7

0.8

1

1

1.25

1.5

1.75

2

2

a

1.05

1.2

1.35

1.5

1.8

2.1

2.4

3

3

3.75

4.5

5.25

6

6

c (min)

0.1

0.1

0.1

0.15

0.15

0.15

0.15

0.15

0.15

0.15

0.15

0.15

0.15

0.2

c (max)

0.25

0.25

0.25

0.4

0.4

0.4

0.5

0.5

0.5

0.6

0.6

0.6

0.6

0.8

da (max)

2

2.6

3.1

3.6

4.1

4.7

5.7

6.8

7.8

9.2

11.2

13.7

15.7

17.7

dw-

Grade A (min)

2.4

3.2

4.1

4.6

5.1

5.9

6.9

8.9

9.6

11.6

15.6

17.4

20.5

22.5

dw-

Grade B (min)

-

-

-

-

-

5.7

6.7

8.7

9.4

11.4

15.4

17.2

20.1

22

e-

Grade A (min)

3.41

4.32

5.46

6.01

6.58

7.66

8.79

11.05

12.12

14.38

18.9

21.1

24.49

26.75

e-

Grade B (min)

-

-

-

-

-

7.5

8.63

10.89

11.94

14.2

18.72

20.88

23.91

26.17

k-

(Nominal Size)

1.1

1.4

1.7

2

2.4

2.8

3.5

4

4.8

5.3

6.4

7.5

8.8

10

k-

Grade A (min)

0.98

1.28

1.58

1.88

2.28

2.68

3.35

3.85

4.65

5.15

6.22

7.32

8.52

9.82

k-

Grade A (max)

1.22

1.52

1.82

2.12

2.52

2.92

3.65

4.15

4.95

5.45

6.56

7.68

8.98

10.18

k-

Grade B (min)

-

-

-

-

-

2.6

3.26

3.76

4.56

5.06

6.11

7.21

8.51

9.71

k-

Grade B (max)

-

-

-

-

-

3

3.74

4.24

5.04

5.54

6.69

7.79

9.09

10.29

k1 (min)

0.7

0.9

1.1

1.3

1.6

1.9

2.28

2.63

3.19

3.54

4.28

5.05

5.96

6.8

r (min)

0.1

0.1

0.1

0.1

0.1

0.2

0.2

0.25

0.25

0.4

0.4

0.6

0.6

0.6

s max=

nominal size

3.2

4

5

5.5

6

7

8

10

11

13

17

19

22

24

s-

Grade A (min)

3.02

3.82

4.82

5.32

5.82

6.78

7.78

9.78

10.73

12.73

16.73

18.67

21.67

23.67

s-

Grade B (min)

-

-

-

-

-

6.64

7.64

9.64

10.57

12.57

16.57

18.48

21.16

23.16

Thread Size

M18

M20

M22

M24

M27

M30

M33

M36

M39

M42

M45

M48

M52

P

2.5

2.5

2.5

3

3

3.5

3.5

4

4

4.5

4.5

5

5

a

7.5

7.5

7.5

9

9

10.5

10.5

12

12

13.5

13.5

15

15

c (min)

0.2

0.2

0.2

0.2

0.2

0.2

0.2

0.2

0.3

0.3

0.3

0.3

0.3

c (max)

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

1

1

1

1

1

da (max)

20.2

22.4

24.4

26.4

30.4

33.4

36.4

39.4

42.4

45.6

48.6

52.6

56.6

dw-

Grade A (min)

25.3

28.2

30

33.6

-

-

-

-

-

-

-

-

-

dw-

Grade B (min)

24.8

27.7

29.5

33.2

38

42.7

46.5

51.1

55.9

59.9

64.7

69.4

74.2

e-

Grade A (min)

30.14

33.53

35.72

39.98

-

-

-

-

-

-

-

-

-

e-

Grade B (min)

29.56

32.95

35.03

39.55

45.2

50.85

55.37

60.79

66.44

71.3

76.95

82.6

88.25

k-

(Nominal Size)

11.5

12.5

14

15

17

18.7

21

22.5

25

26

28

30



33

k-

Grade A (min)

11.28

12.28

13.78

14.78

-

-

-

-

-

-

-

-

-

k-

Grade A (max)

11.72

12.72

14.22

15.22

-

-

-

-

-

-

-

-

-

k-

Grade B (min)

11.15

12.15

13.65

14.65

16.65

18.28

20.58

22.08

24.58

25.58

27.58

29.58

32.5

k-

Grade B (max)

11.85

12.85

14.35

15.35

17.35

19.12

21.42

22.92

25.42

26.42

28.42

30.42

33.5

k1 (min)

7.8

8.5

9.6

10.3

11.7

12.8

14.4

15.5

17.2

17.9

19.3

20.9

22.8

r (min)

0.6

0.8

0.8

0.8

1

1

1

1

1

1.2

1.2

1.6

1.6

s max=

nominal size

27

30

32

36

41

46

50

55

60

65

70

75

80

s-

Grade A (min)

26.67

29.67

31.61

35.38

-

-

-

-

-

-

-

-

-

s-

Grade B (min)

26.15

29.16

31

35

40

45

49

53.8

58.8

63.1

68.1

73.1

78.1


Common Imperial to Metric Equivalent Chart:

Imperial(inch)

Metric(mm)

Imperial(inch)

Metric(mm)

1/16

1.59

1-3/8

34.93

1/8

3.18

1-1/2

38.10

3/16

4.76

1-5/8

41.28

1/4

6.35

1-3/4

44.45

5/16

7.94

1-7/8

47.63

3/8

9.53

2

50.80

7/16

11.11

2-1/4

57.15

1/2

12.70

2-1/2

63.50

9/16

14.29

2-3/4

69.85

5/8

15.88

3

76.20

11/16

17.46

3-1/4

82.55

3/4

19.05

3-1/2

88.90

7/8

22.23

3-3/4

95.25

1

25.40

4

101.60

1-1/4

31.75

Equivalent Norm:

GB

ISO

DIN

ASME/ANSI

EN

UNI

NF

IS

GB /T 5783

ISO 4017

DIN EN ISO 4017

ASME/ANSI B 18.2.3.1M

EN 24017

UNI 5739

NF E 25-114

IS 1364(-2)

Some of the above standards may be approximate equivalents; in case of disagreement, the original standard shall prevail.
