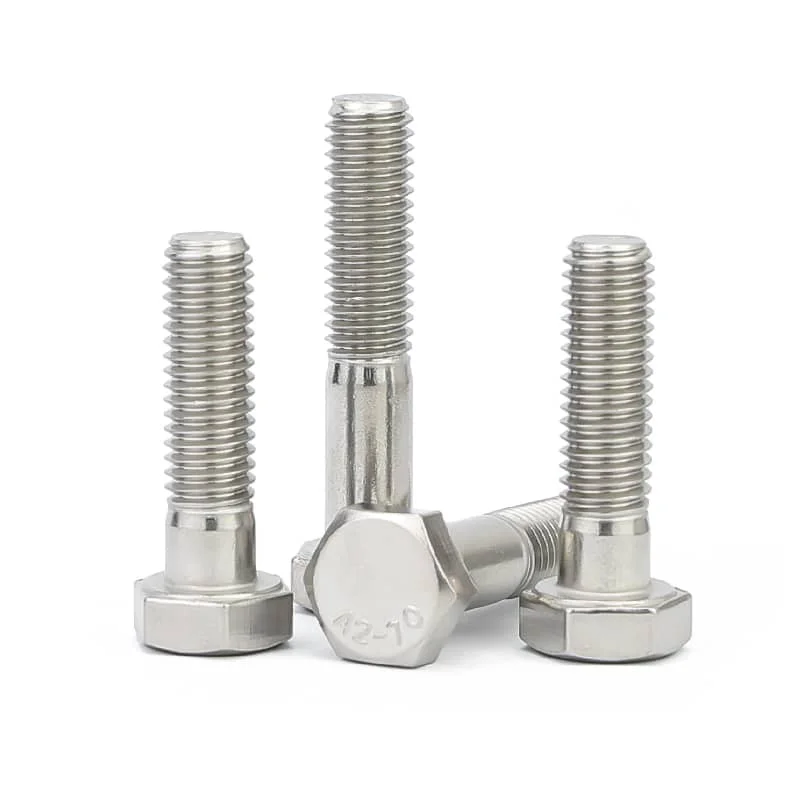

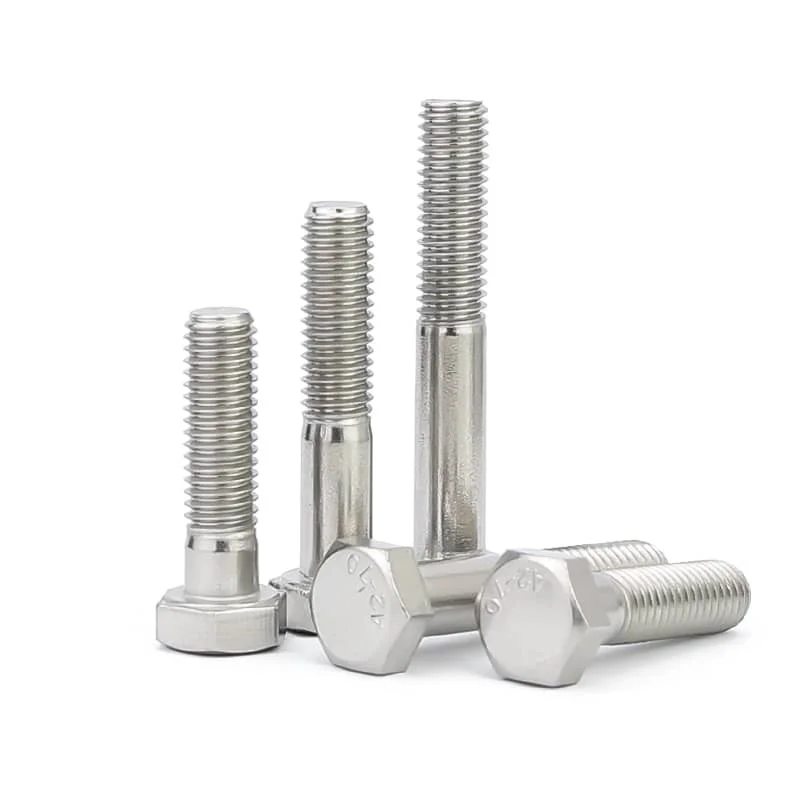

DIN931 Hex Head Bolts Half Thread A2-50 Stainless Steel 304

SKU: N/A Category: Bolts Tags: Bolt, din931, Hex, Hex Bolt, Hex Head, Hex Head Bolts, Hex Screw, Stainless Steel

System of Measurement

Metric(MM)

Finish

Plain

Diameter

M24
M27
M30
M33
M36

Length

85
90
95
100
105
110
115
120
130
135
140
150
155
160
170
175
180
190
195
200
210
240

Clear

Description:

Product Name:	Hex Head Bolts Half Thread
Specification:	DIN931
Material Grade:	Stainless Steel 304（A2-50）
Measurement:	Metric(MM)
Diameter Range:	M24, M27, M30, M33 , M36
Length Range:	85mm, 90mm, 95mm, 100mm, 105mm, 110mm, 115mm, 120mm, 125mm, 130mm, 135mm, 140mm, 145mm, 150mm, 160mm, 165mm, 170mm, 175mm, 180mm, 190mm, 200mm, 210mm, 220mm, 230mm, 240mm
Surface Finish:	Plain
Color:	Silvery
Place of Origin:	DongGuan, China
Quality Control:	100% inspection during production
Packaging:	Plastic bags/cartons
Sample:	Availbale
Customized:	Availbale

Drawing:

Data Sheet:

Thread Size	M1.6	M2	M2.5	M3	M3.5	M4	M5	M6	M7	M8	M10	M12
P	0.35	0.4	0.45	0.5	0.6	0.7	0.8	1	1	1.25	1.5	1.75
b (L≤125)	9	10	11	12	13	14	16	18	20	22	26	30
b (125＜L≤200)	-	-	-	-	-	-	22	24	26	28	32	36
b (L＞200)	-	-	-	-	-	-	-	-	-	-	45	49
c (min)	0.1	0.1	0.1	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15
c (max)	0.25	0.25	0.25	0.4	0.4	0.4	0.5	0.5	0.5	0.6	0.6	0.6
da (max)	2	2.6	3.1	3.6	4.1	4.7	5.7	6.8	7.8	9.2	11.2	13.7
ds max= nominal size	1.6	2	2.5	3	3.5	4	5	6	7	8	10	12
ds- Grade A (min)	1.46	1.86	2.36	2.86	3.32	3.82	4.82	5.82	6.78	7.78	9.78	11.73
ds- Grade B (min)	-	-	-	-	-	-	-	-	-	-	-	-
dw- Grade A (min)	2.4	3.2	4.1	4.6	5.1	5.9	6.9	8.9	9.8	11.6	15.6	17.4
dw- Grade B (min)	-	-	-	-	-	-	-	-	-	-	-	-
e- Grade A (min)	3.41	4.32	5.46	6.01	6.58	7.66	8.79	11.05	12.12	14.38	18.9	21.1
e- Grade B (min)	-	-	-	-	-	-	-	-	-	-	-	-
k- (Nominal Size)	1.1	1.4	1.7	2	2.4	2.8	3.5	4	4.8	5.3	6.4	7.5
k- Grade A (min)	0.98	1.28	1.58	1.88	2.28	2.68	3.35	3.85	4.65	5.15	6.22	7.32
k- Grade A (max)	1.22	1.52	1.82	2.12	2.52	2.92	3.65	4.15	4.95	5.45	6.56	7.68
k- Grade B (min)	-	-	-	-	-	-	-	-	-	-	-	-
k- Grade B (max)	-	-	-	-	-	-	-	-	-	-	-	-
k1 (min)	0.7	0.9	1.1	1.3	1.6	1.9	2.28	2.63	3.19	3.54	4.28	5.05
r (min)	0.1	0.1	0.1	0.1	0.1	0.2	0.2	0.25	0.25	0.4	0.4	0.6
s max= nominal size	3.2	4	5	5.5	6	7	8	10	11	13	17	19
s- Grade A (min)	3.02	3.82	4.82	5.32	5.82	6.78	7.78	9.78	10.73	12.73	16.73	18.67
s- Grade B (min)	-	-	-	-	-	-	-	-	-	-	-	-

Thread Size	M14	M16	M18	M20	M22	M24	M27	M30	M33	M36	M39
P	2	2	2.5	2.5	2.5	3	3	3.5	3.5	4	4
b(L≤125)	34	38	42	46	50	54	60	66	72	78	84
b(125＜L≤200)	40	44	48	52	56	60	66	72	78	84	90
b(L＞200)	53	57	61	65	69	73	79	85	91	97	103
c (min)	0.15	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.3
c (max)	0.6	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	1
da (max)	15.7	17.7	20.2	22.4	24.4	26.4	30.4	33.4	36.4	39.4	42.4
ds max= nominal size	14	16	18	20	22	24	27	30	33	36	39
ds- Grade A (min)	13.73	15.73	17.73	19.67	21.67	23.67	-	-	-	-	-
ds- Grade B (min)	-	15.57	17.57	19.48	21.48	23.48	26.48	29.48	32.38	35.38	38.38
dw- Grade A (min)	20.5	22.5	25.3	28.2	30	33.6	-	-	-	-	-
dw- Grade B (min)	-	22	24.8	27.7	29.5	33.2	38	42.7	46.5	51.1	55.9
e- Grade A (min)	24.49	26.75	30.14	33.53	35.72	39.98	-	-	-	-	-
e- Grade B (min)	-	26.17	29.56	32.95	35.03	39.55	45.2	50.85	55.37	60.79	66.44
k- (Nominal Size)	8.8	10	11.5	12.5	14	15	17	18.7	21	22.5	25
k- Grade A (min)	8.62	9.82	11.28	12.28	13.78	14.78	-	-	-	-	-
k- Grade A (max)	8.98	10.18	11.72	12.72	14.22	15.22	-	-	-	-	-
k- Grade B (min)	-	9.71	11.15	12.15	13.65	14.65	16.65	18.28	20.58	22.08	24.58
k- Grade B (max)	-	10.29	11.85	12.85	14.35	15.35	17.35	19.12	21.42	22.92	25.42
k1 (min)	5.96	6.8	7.8	8.5	9.6	10.3	11.7	12.8	14.4	15.5	17.2
r (min)	0.6	0.6	0.6	0.8	0.8	0.8	1	1	1	1	1
s max= nominal size	22	24	27	30	32	36	41	46	50	55	60
s- Grade A (min)	21.67	23.67	26.67	29.67	31.61	35.38	-	-	-	-	-
s- Grade B (min)	-	23.16	26.15	29.16	31	35	40	45	49	53.8	58.8

Equivalent Norm:

GB	ISO	DIN	EN	UNI	NF	IS
GB /T 5782	ISO 4014	DIN EN ISO 4014	EN 24014	UNI 5734	NF E 25-112	IS 1364(-1)
Some of the above standards may be approximate equivalents; in case of disagreement, the original standard shall prevail.
