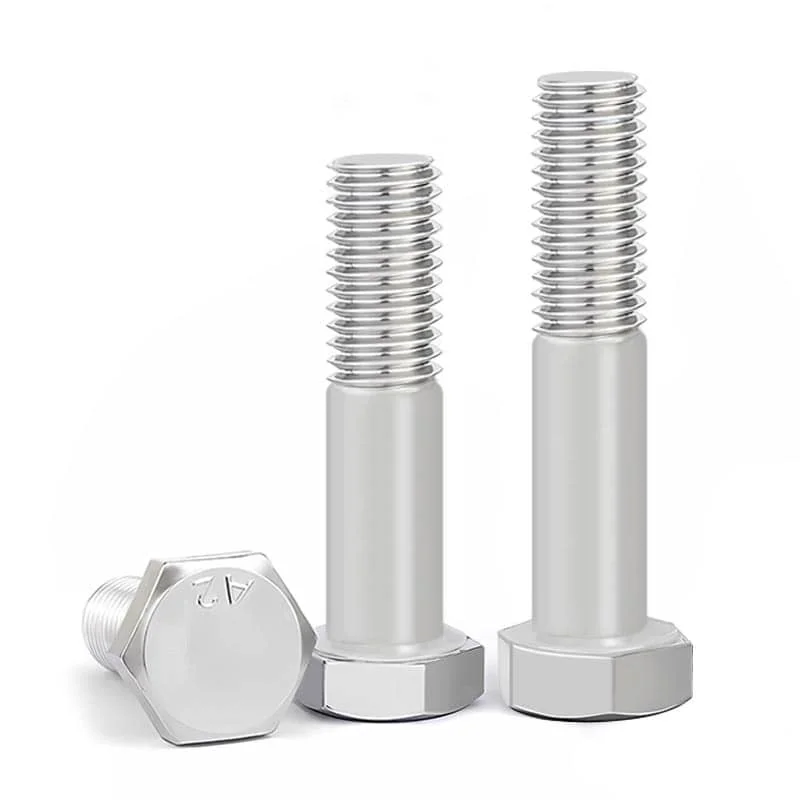

DIN931 Hex Head Bolts Half Thread A2 Stainless Steel 304

SKU: BG0201135 Category: Bolts Tags: Bolts, din931, Hex Head, Stainless Steel

System of Measurement

Metric(MM)

Finish

customize
Plain

Diameter

M24
M27
M30

Length

70
75
80
95
100
120
130
140
150

Clear

Description:

Product Name:	Hex Head Bolts Half Thread
Specification:	DIN931
Material Grade:	Stainless Steel 304（A2）
Measurement:	Metric(MM)
Diameter Range:	M24, M27, M30
Length Range:	70mm, 75mm, 80mm, 90mm, 95mm, 100mm, 110mm, 120mm, 130mm, 140mm, 150mm,
Surface Finish:	Plain
Color:	Silvery
Place of Origin:	DongGuan, China
Quality Control:	100% inspection during production
Packaging:	Plastic bags/cartons
Sample:	Availbale
Customized:	Availbale

Drawing:

Data Sheet:

Thread Size	M1.6	M2	M2.5	M3	M3.5	M4	M5	M6	M7	M8	M10	M12
P	0.35	0.4	0.45	0.5	0.6	0.7	0.8	1	1	1.25	1.5	1.75
b (L≤125)	9	10	11	12	13	14	16	18	20	22	26	30
b (125＜L≤200)	-	-	-	-	-	-	22	24	26	28	32	36
b (L＞200)	-	-	-	-	-	-	-	-	-	-	45	49
c (min)	0.1	0.1	0.1	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15
c (max)	0.25	0.25	0.25	0.4	0.4	0.4	0.5	0.5	0.5	0.6	0.6	0.6
da (max)	2	2.6	3.1	3.6	4.1	4.7	5.7	6.8	7.8	9.2	11.2	13.7
ds max= nominal size	1.6	2	2.5	3	3.5	4	5	6	7	8	10	12
ds- Grade A (min)	1.46	1.86	2.36	2.86	3.32	3.82	4.82	5.82	6.78	7.78	9.78	11.73
ds- Grade B (min)	-	-	-	-	-	-	-	-	-	-	-	-
dw- Grade A (min)	2.4	3.2	4.1	4.6	5.1	5.9	6.9	8.9	9.8	11.6	15.6	17.4
dw- Grade B (min)	-	-	-	-	-	-	-	-	-	-	-	-
e- Grade A (min)	3.41	4.32	5.46	6.01	6.58	7.66	8.79	11.05	12.12	14.38	18.9	21.1
e- Grade B (min)	-	-	-	-	-	-	-	-	-	-	-	-
k- (Nominal Size)	1.1	1.4	1.7	2	2.4	2.8	3.5	4	4.8	5.3	6.4	7.5
k- Grade A (min)	0.98	1.28	1.58	1.88	2.28	2.68	3.35	3.85	4.65	5.15	6.22	7.32
k- Grade A (max)	1.22	1.52	1.82	2.12	2.52	2.92	3.65	4.15	4.95	5.45	6.56	7.68
k- Grade B (min)	-	-	-	-	-	-	-	-	-	-	-	-
k- Grade B (max)	-	-	-	-	-	-	-	-	-	-	-	-
k1 (min)	0.7	0.9	1.1	1.3	1.6	1.9	2.28	2.63	3.19	3.54	4.28	5.05
r (min)	0.1	0.1	0.1	0.1	0.1	0.2	0.2	0.25	0.25	0.4	0.4	0.6
s max= nominal size	3.2	4	5	5.5	6	7	8	10	11	13	17	19
s- Grade A (min)	3.02	3.82	4.82	5.32	5.82	6.78	7.78	9.78	10.73	12.73	16.73	18.67
s- Grade B (min)	-	-	-	-	-	-	-	-	-	-	-	-

Thread Size	M14	M16	M18	M20	M22	M24	M27	M30	M33	M36	M39
P	2	2	2.5	2.5	2.5	3	3	3.5	3.5	4	4
b(L≤125)	34	38	42	46	50	54	60	66	72	78	84
b(125＜L≤200)	40	44	48	52	56	60	66	72	78	84	90
b(L＞200)	53	57	61	65	69	73	79	85	91	97	103
c (min)	0.15	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.3
c (max)	0.6	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	1
da (max)	15.7	17.7	20.2	22.4	24.4	26.4	30.4	33.4	36.4	39.4	42.4
ds max= nominal size	14	16	18	20	22	24	27	30	33	36	39
ds- Grade A (min)	13.73	15.73	17.73	19.67	21.67	23.67	-	-	-	-	-
ds- Grade B (min)	-	15.57	17.57	19.48	21.48	23.48	26.48	29.48	32.38	35.38	38.38
dw- Grade A (min)	20.5	22.5	25.3	28.2	30	33.6	-	-	-	-	-
dw- Grade B (min)	-	22	24.8	27.7	29.5	33.2	38	42.7	46.5	51.1	55.9
e- Grade A (min)	24.49	26.75	30.14	33.53	35.72	39.98	-	-	-	-	-
e- Grade B (min)	-	26.17	29.56	32.95	35.03	39.55	45.2	50.85	55.37	60.79	66.44
k- (Nominal Size)	8.8	10	11.5	12.5	14	15	17	18.7	21	22.5	25
k- Grade A (min)	8.62	9.82	11.28	12.28	13.78	14.78	-	-	-	-	-
k- Grade A (max)	8.98	10.18	11.72	12.72	14.22	15.22	-	-	-	-	-
k- Grade B (min)	-	9.71	11.15	12.15	13.65	14.65	16.65	18.28	20.58	22.08	24.58
k- Grade B (max)	-	10.29	11.85	12.85	14.35	15.35	17.35	19.12	21.42	22.92	25.42
k1 (min)	5.96	6.8	7.8	8.5	9.6	10.3	11.7	12.8	14.4	15.5	17.2
r (min)	0.6	0.6	0.6	0.8	0.8	0.8	1	1	1	1	1
s max= nominal size	22	24	27	30	32	36	41	46	50	55	60
s- Grade A (min)	21.67	23.67	26.67	29.67	31.61	35.38	-	-	-	-	-
s- Grade B (min)	-	23.16	26.15	29.16	31	35	40	45	49	53.8	58.8

Equivalent Norm:

GB	ISO	DIN	EN	UNI	NF	IS
GB /T 5782	ISO 4014	DIN EN ISO 4014	EN 24014	UNI 5734	NF E 25-112	IS 1364(-1)
Some of the above standards may be approximate equivalents; in case of disagreement, the original standard shall prevail.
