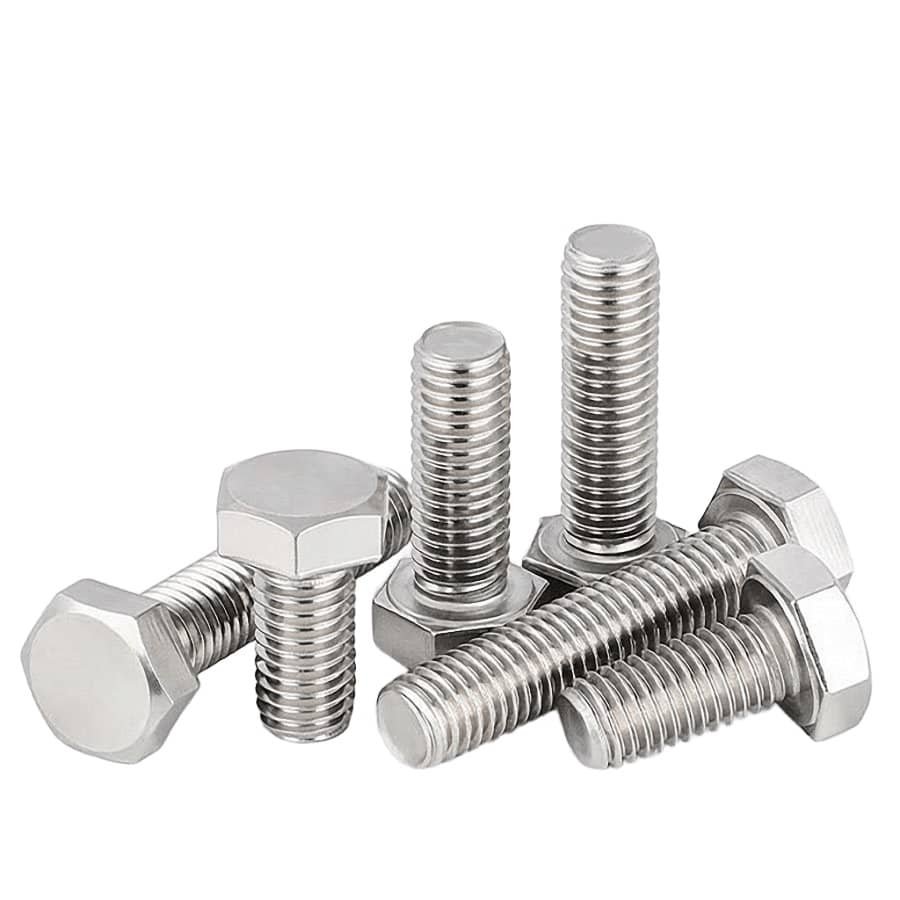

DIN933 Hex Head Bolts Fully Threaded A2-70 Stainless Steel 304

SKU: BG0201009 Category: Bolts Tags: Bolt, DIN933, Fastener, Fully Threaded, Hex Head Bolts, Stainless Steel

System of Measurement

Metric(MM)

Diameter

M10
M12
M14
M16
M18
M20
M22
M24
M27
M3
M30
M33
M4
M5
M6
M8

Length

Finish

Plain

Clear

Description：

Product Name:	Hex Head Bolts
Specification:	DIN933
Material Grade:	Stainless Steel 304（A2-70）
Measurement:	Metric(MM)
Diameter Range:	M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33
Length Range:	6mm, 8mm, 10mm, 12mm, 13mm,14mm, 15mm,16mm, 18mm, 20mm, 22mm, 24mm, 25mm, 27mm, 28mm, 30mm, 35mm, 40mm, 42mm, 45mm, 47mm, 48mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm, 95mm, 100mm, 105mm, 110mm, 115mm, 120mm, 125mm, 130mm, 135mm, 140mm, 145mm, 150mm, 160mm, 165mm, 170mm, 175mm, 180mm, 190mm, 200mm, 210mm, 220mm, 230mm, 240mm, 250mm, 260mm, 270mm, 280mm, 290mm, 300mm,
Surface Finish:	Plain
Color:	Silvery
Place of Origin:	DongGuan, China
Quality Control:	100% inspection during production
Packaging:	Plastic bags/cartons
Sample:	Availbale
Customized:	Availbale

Drawing:

Data Sheet:

Thread Size	M1.6	M2	M2.5	M3	M3.5	M4	M5	M6	M7	M8	M10	M12	M14	M16
P	0.35	0.4	0.45	0.5	0.6	0.7	0.8	1	1	1.25	1.5	1.75	2	2
a	1.05	1.2	1.35	1.5	1.8	2.1	2.4	3	3	3.75	4.5	5.25	6	6
c (min)	0.1	0.1	0.1	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.2
c (max)	0.25	0.25	0.25	0.4	0.4	0.4	0.5	0.5	0.5	0.6	0.6	0.6	0.6	0.8
da (max)	2	2.6	3.1	3.6	4.1	4.7	5.7	6.8	7.8	9.2	11.2	13.7	15.7	17.7
dw- Grade A (min)	2.4	3.2	4.1	4.6	5.1	5.9	6.9	8.9	9.6	11.6	15.6	17.4	20.5	22.5
dw- Grade B (min)	-	-	-	-	-	5.7	6.7	8.7	9.4	11.4	15.4	17.2	20.1	22
e- Grade A (min)	3.41	4.32	5.46	6.01	6.58	7.66	8.79	11.05	12.12	14.38	18.9	21.1	24.49	26.75
e- Grade B (min)	-	-	-	-	-	7.5	8.63	10.89	11.94	14.2	18.72	20.88	23.91	26.17
k- (Nominal Size)	1.1	1.4	1.7	2	2.4	2.8	3.5	4	4.8	5.3	6.4	7.5	8.8	10
k- Grade A (min)	0.98	1.28	1.58	1.88	2.28	2.68	3.35	3.85	4.65	5.15	6.22	7.32	8.52	9.82
k- Grade A (max)	1.22	1.52	1.82	2.12	2.52	2.92	3.65	4.15	4.95	5.45	6.56	7.68	8.98	10.18
k- Grade B (min)	-	-	-	-	-	2.6	3.26	3.76	4.56	5.06	6.11	7.21	8.51	9.71
k- Grade B (max)	-	-	-	-	-	3	3.74	4.24	5.04	5.54	6.69	7.79	9.09	10.29
k1 (min)	0.7	0.9	1.1	1.3	1.6	1.9	2.28	2.63	3.19	3.54	4.28	5.05	5.96	6.8
r (min)	0.1	0.1	0.1	0.1	0.1	0.2	0.2	0.25	0.25	0.4	0.4	0.6	0.6	0.6
s max= nominal size	3.2	4	5	5.5	6	7	8	10	11	13	17	19	22	24
s- Grade A (min)	3.02	3.82	4.82	5.32	5.82	6.78	7.78	9.78	10.73	12.73	16.73	18.67	21.67	23.67
s- Grade B (min)	-	-	-	-	-	6.64	7.64	9.64	10.57	12.57	16.57	18.48	21.16	23.16

Thread Size	M18	M20	M22	M24	M27	M30	M33	M36	M39	M42	M45	M48	M52
P	2.5	2.5	2.5	3	3	3.5	3.5	4	4	4.5	4.5	5	5
a	7.5	7.5	7.5	9	9	10.5	10.5	12	12	13.5	13.5	15	15
c (min)	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.3	0.3	0.3	0.3	0.3
c (max)	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	1	1	1	1	1
da (max)	20.2	22.4	24.4	26.4	30.4	33.4	36.4	39.4	42.4	45.6	48.6	52.6	56.6
dw- Grade A (min)	25.3	28.2	30	33.6	-	-	-	-	-	-	-	-	-
dw- Grade B (min)	24.8	27.7	29.5	33.2	38	42.7	46.5	51.1	55.9	59.9	64.7	69.4	74.2
e- Grade A (min)	30.14	33.53	35.72	39.98	-	-	-	-	-	-	-	-	-
e- Grade B (min)	29.56	32.95	35.03	39.55	45.2	50.85	55.37	60.79	66.44	71.3	76.95	82.6	88.25
k- (Nominal Size)	11.5	12.5	14	15	17	18.7	21	22.5	25	26	28	30	33
k- Grade A (min)	11.28	12.28	13.78	14.78	-	-	-	-	-	-	-	-	-
k- Grade A (max)	11.72	12.72	14.22	15.22	-	-	-	-	-	-	-	-	-
k- Grade B (min)	11.15	12.15	13.65	14.65	16.65	18.28	20.58	22.08	24.58	25.58	27.58	29.58	32.5
k- Grade B (max)	11.85	12.85	14.35	15.35	17.35	19.12	21.42	22.92	25.42	26.42	28.42	30.42	33.5
k1 (min)	7.8	8.5	9.6	10.3	11.7	12.8	14.4	15.5	17.2	17.9	19.3	20.9	22.8
r (min)	0.6	0.8	0.8	0.8	1	1	1	1	1	1.2	1.2	1.6	1.6
s max= nominal size	27	30	32	36	41	46	50	55	60	65	70	75	80
s- Grade A (min)	26.67	29.67	31.61	35.38	-	-	-	-	-	-	-	-	-
s- Grade B (min)	26.15	29.16	31	35	40	45	49	53.8	58.8	63.1	68.1	73.1	78.1

Equivalent Norm:

GB	ISO	DIN	ASME/ANSI	EN	UNI	NF	IS
GB /T 5783	ISO 4017	DIN EN ISO 4017	ASME/ANSI B 18.2.3.1M	EN 24017	UNI 5739	NF E 25-114	IS 1364(-2)
Some of the above standards may be approximate equivalents; in case of disagreement, the original standard shall prevail.
