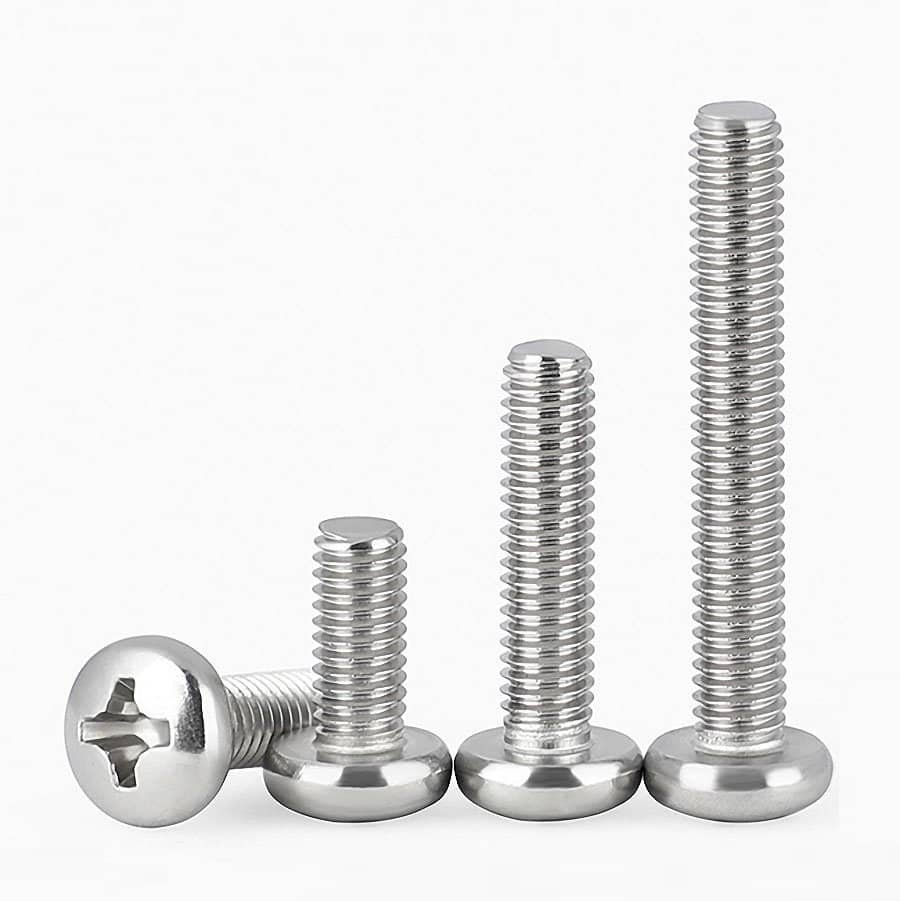

Machine Screws Phillips Pan Head GB823 Stainless Steel 304-1

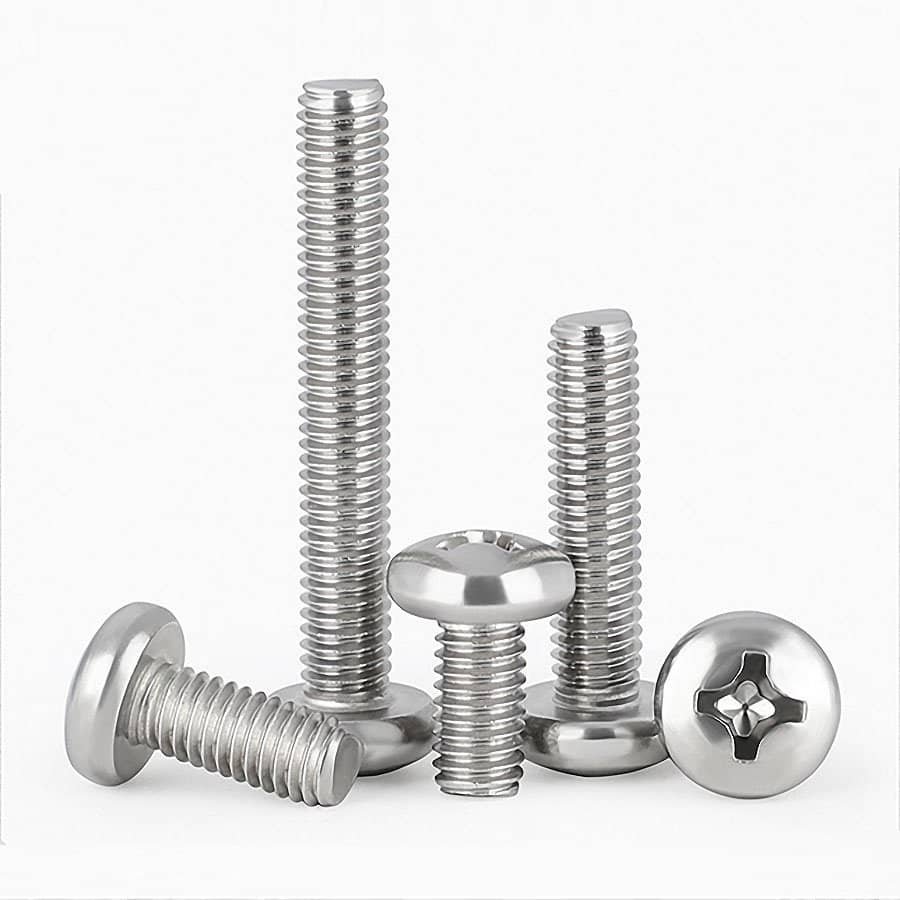

Machine Screws Phillips Pan Head GB823 Stainless Steel 304-2

Machine Screws Phillips Pan Head GB823 Stainless Steel 304

SKU: BG0103001-2 Categories: , Tags: , , , ,
Add to Quote

Description：

Product Name:

Pan Head Machine Screws/Pan Head Bolts

Specification:

GB823

Material Grade:

Stainless Steel 304

Measurement:

Metric(MM)

Diameter Range:

M1.6, M2, M2.5, M3, M4, M5, M6, M8

Length Range:

3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 10mm, 12mm,14mm, 16mm, 18mm, 20mm, 22mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 95mm,

Surface Finish:

Plain

Color:

Silvery

Place of Origin:

DongGuan, China

Quality Control:

100% inspection during production

Packaging:

Plastic bags/cartons

Sample:

Availbale

Customized:

Availbale

Drawing:

Machine Screws Phillips Pan Head GB823 Drawing

Data Sheet:

Thread Size

M2

M2.5

M3

M3.5

M4

M5

M6

M8

P

0.4

0.45

0.5

0.6

0.7

0.8

1

1.25

a(max)

0.8

0.9

1

1.2

1.4

1.6

2

2.5

dk(max)

3.5

4.5

5.5

6.0

7.0

9.0

10.5

14.0

dk(min)

3.2

4.2

5.2

5.7

6.64

8.64

10.07

13.57

k(max)

1.4

1.8

2.15

2.45

2.75

3.45

4.1

5.4

k(min)

1.26

1.66

2.01

2.31

2.61

3.27

3.8

5.1

r(min)

0.1

0.1

0.1

0.1

0.2

0.2

0.25

0.4

R

4.5

6

7

8

9

12

14

18

x(max)

1

1.1

1.25

1.5

1.75

2

2.5

3.2

Socket No.

1

1

2

2

2

2

3

3

m

2.2

2.6

3.5

3.8

4.1

4.8

6.2

7.7

 depth(max)

1.01

1.42

1.43

1.73

2.03

2.75

2.86

4.367

 depth(min)

0.6

1

0.86

1.15

1.45

2.14

2.26

3.73
