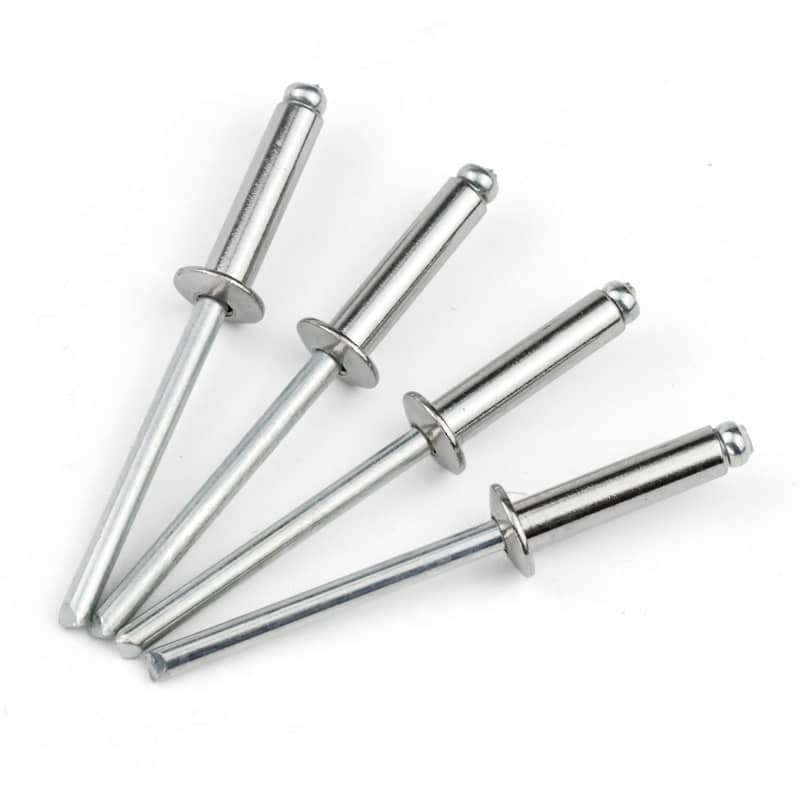

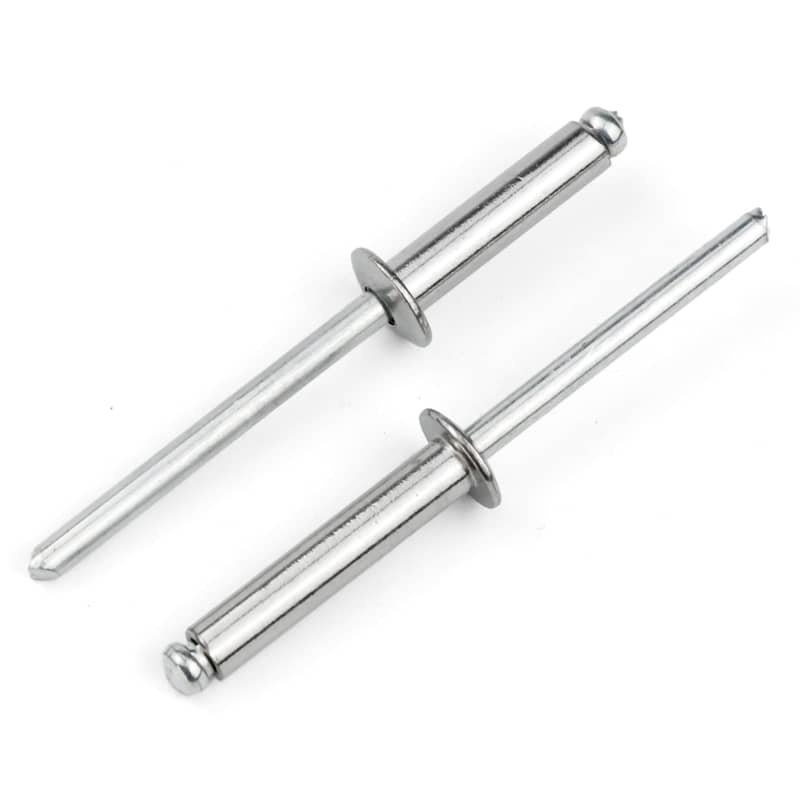

Rivet Open End Flat Round Dome Head Pop Blind Rivets GB 12618 304/304(stainless steels)

SKU: BG0701009-1 Category: Rivets Tags: Blind Rivets, Fastener, Grip Steel Mandrel, Pop Rivet, Stainless Steel

System of Measurement

Metric(MM)

Diameter

2.4
3
3.2
4
4.8
5
6
6.4

Length

4
5
6
7
7.3
8
9
10
11
12
13
14
16
18
19
20
21
25
30
35
40

Finish

Black
Natural
Plain

Clear

Description：

Product Name:	Pop Blind Rivets/ Pull Mandrel Rivets
Specification:	GB12618
Material Grade:	5050/1008(aluminum-iron)
Measurement:	Metric(MM)
Diameter Range:	Φ2.4, Φ3, Φ3.2, Φ4, Φ4.2, Φ4.8, Φ5, Φ6, Φ6.4,
Length Range:	4mm, 5mm, 6mm, 7mm, 7.3mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 18mm, 19mm, 20mm, 21mm, 22mm, 25mm, 27mm, 28mm, 30mm, 35mm, 40mm
Surface Finish:	Plain, Nature, Black
Color:	Silvery, Black
Place of Origin:	DongGuan, China
Quality Control:	100% inspection during production
Packaging:	Plastic bags/cartons
Sample:	Availbale
Customized:	Availbale

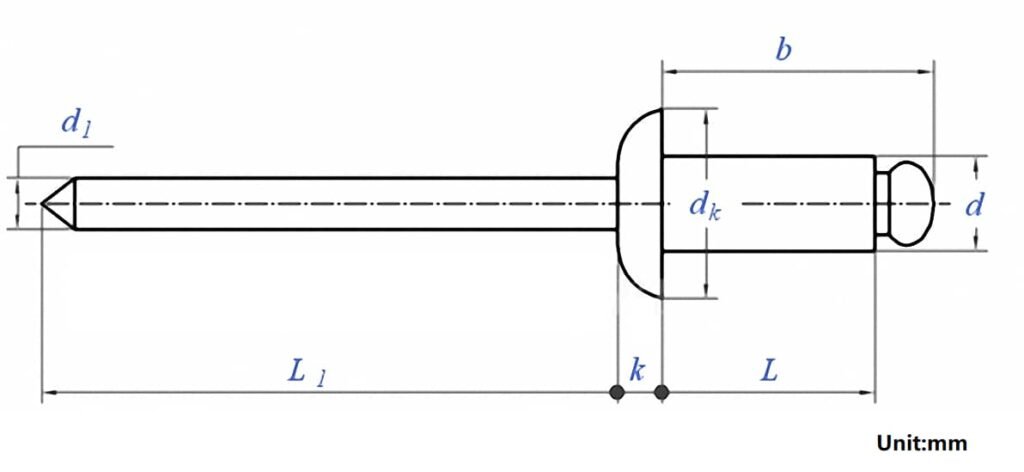

Drawing:

Data Sheet:

Thread Size	Φ2.4	Φ3	Φ3.2	Φ4	Φ4.8	Φ5	Φ6	Φ6.4
d(max)	2.48	3.08	3.28	4.08	4.88	5.08	6.08	6.48
d(min)	2.25	2.85	3.05	3.85	4.65	4.85	5.85	6.25
dk(max)	5	6.3	6.7	8.4	10.1	10.5	12.6	13.4
dk(min)	4.2	5.4	5.8	6.9	8.3	8.7	10.8	11.6
k(max)	1	1.3	1.3	1.7	2	2.1	2.5	2.7
d1(max)	1.55	2	2	2.45	2.95	2.95	3.4	3.9
L1(min)	25	25	25	27	27	27	27	27
b(max)	L(max)+3.5	L(max)+3.5	L(max)+4	L(max)+4	L(max)+4.5	L(max)+4.5	L(max)+5	L(max)+5.5
Shear load/N(min)-class 10	250	400	500	850	1200	1400	2100	2200
Shear load/N(min)-class 11	350	550	750	1250	1850	2150	3200	3400
Tensile load/N(min)-class 10	350	550	700	1200	1700	2000	3000	3150
Tensile load/N(min)-class 11	550	850	1100	1800	2600	3100	4600	4850
Mandrel break load/N(max)	2000	3000	3500	5000	6500	6500	9000	11000
Head retention test load,N	10	15	15	20	25	25	30	30

Equivalent Norm:

GB	ISO	DIN
GB /T 12618.1	ISO 15977	DIN EN ISO 15977
Some of the above standards may be approximate equivalents; in case of disagreement, the original standard shall prevail.
