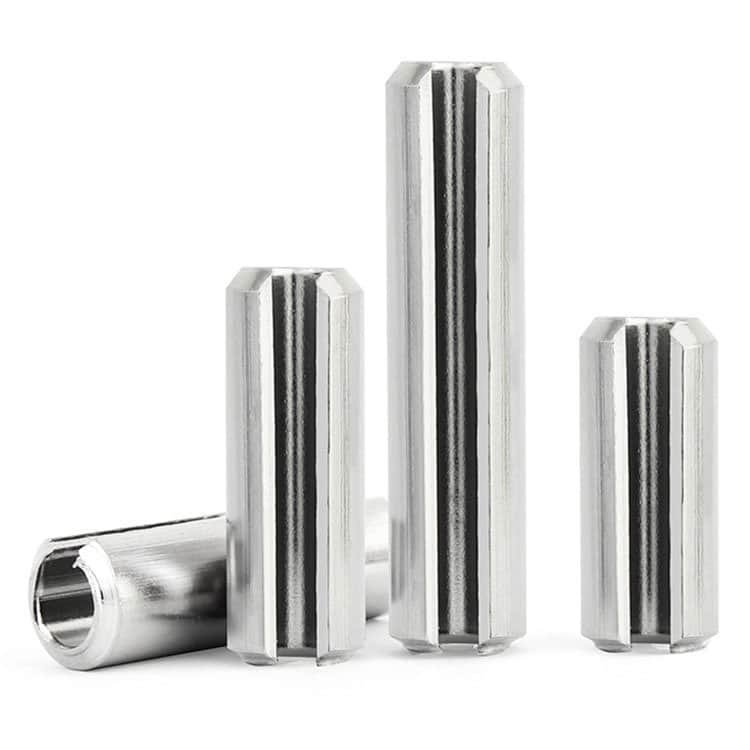

Slotted Spring Pins GB879 Stainless Steel 304 Roll Pin-1

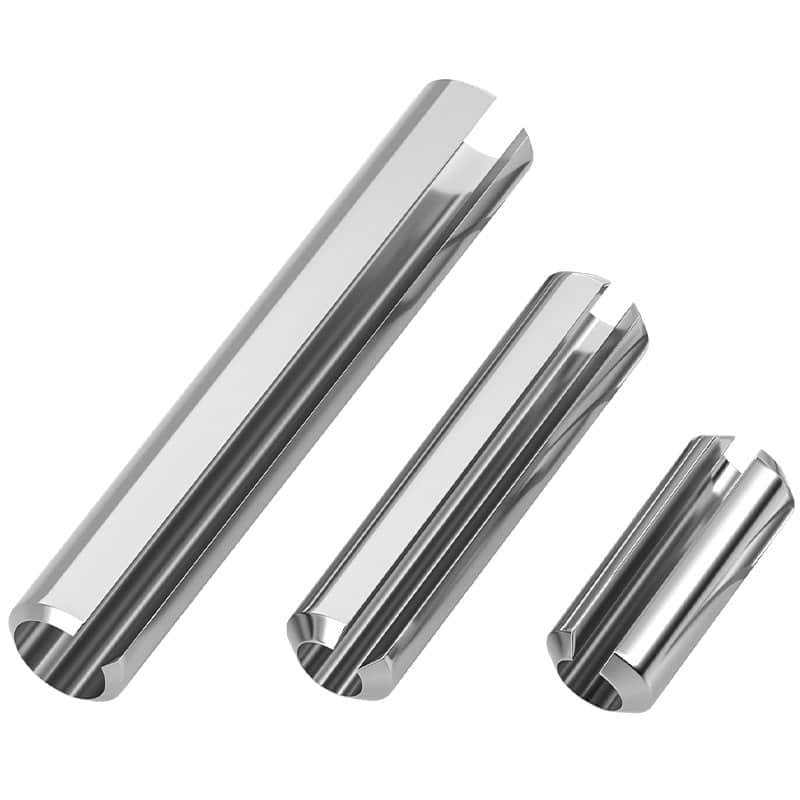

Slotted Spring Pins GB879 Stainless Steel 304 Roll Pin-2

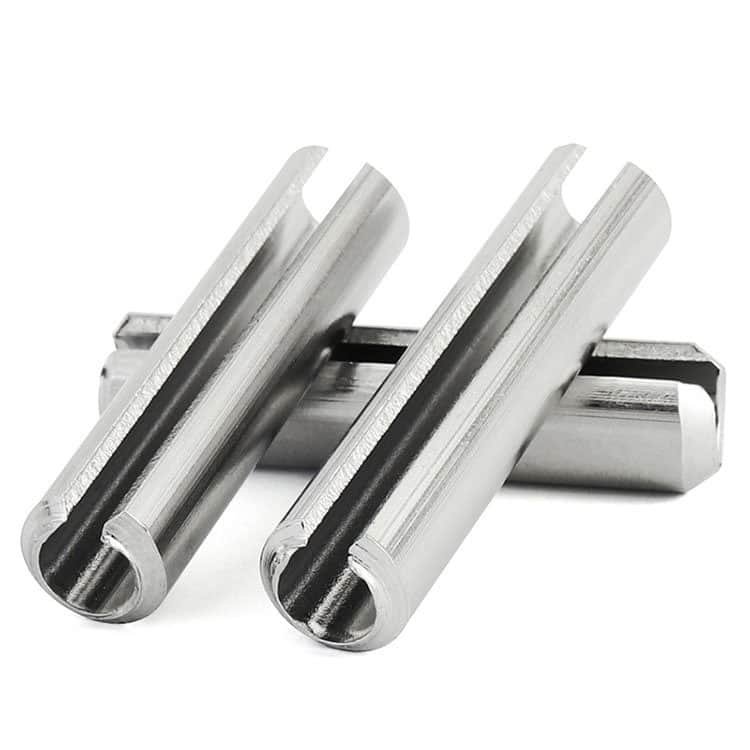

Slotted Spring Pins GB879 Stainless Steel 304 Roll Pin-3

Slotted Spring Pins GB879 Stainless Steel 304

SKU: BG0701010 Category: Tags: , , ,
Add to Quote

Description：

Product Name:

Slotted Spring Pins/ Positioning Pins/Open Pins/Split Pins/Straight pins/Roll pins

Specification:

GB879

Material Grade:

Stainless Steel 304

Measurement:

Metric(MM)

Diameter Range:

Φ1.5, Φ2, Φ2.5, Φ3, Φ4, Φ5, Φ6, Φ8, Φ10, Φ12

Length Range:

5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm, 100mm

Surface Finish:

Plain

Color:

Silvery

Place of Origin:

DongGuan, China

Quality Control:

100% inspection during production

Industry Focus:

 Widely used for automotive, mechanics, car garage, workshop, power equipment

Packaging:

Plastic bags/cartons

Sample:

Availbale

Customized:

Availbale

Features:

  • 304 is austenitic stainless steel with carbon levels of .15% and .08%, and chromium levels of 17 to 19% and 18 to 20%

  • Offers versatility and great corrosion resistance

  • A plain finished part is one that has not been treated or had a finish applied to it for additional protection

  • Economical solution when parts are frequently changed out or don't have exposure to corrosion

  • Stainless steel contains more than 11% chromium, resists corrosion, maintains its strength at high temperatures, and is easily maintained

  • Stainless steel is strong, durable, and corrosion resistant

  • Slotted spring pins are hollow, cylindrical tube-style press fit fasteners with chamfered ends that are lighter, cheaper, and easier to install than solid pins

  • Commonly used as locking devises, positioning points, anti-chafing surfaces, shafts, or sleeves for wiring

  • Spring pins are slotted or coiled to expand to fit the diameter of a hole, which should be smaller than the diameter of the pin

Drawing:

Slotted Spring Pins GB879 Drawing-1

Data Sheet:

Diameter

(Metric)

Φ1

Φ1.5

Φ2

Φ2.5

Φ3

Φ3.5

Φ4

Φ4.5

Φ5

Φ6

Φ8

Φ10

Φ12

Φ13

d (Max)

1.3

1.8

2.4

2.9

3.5

4.0

4.6

5.1

5.6

6.7

8.8

10.8

12.8

13.8

d (Min)

1.2

1.7

2.3

2.8

3.3

3.8

4.4

4.9

5.4

6.4

8.5

10.5

12.5

13.5

d1

0.8

1.1

1.5

1.8

2.1

2.3

2.8

2.9

3.4

4

5.5

6.5

7.5

8.5

c (Max)

0.35

0.45

0.55

0.6

0.7

0.8

0.85

1

1.1

1.4

2

2.4

2.4

2.4

c (Min)

0.15

0.25

0.35

0.4

0.5

0.6

0.65

0.8

0.9

1.2

1.6

2

2

2

h

0.2

0.3

0.4

0.5

0.6

0.75

0.8

1

1

1.2

1.5

2

2.5

2.5

Double Shear  Min, kN:

0.7

1.58

2.82

4.38

6.32

9.06

11.24

15.36

17.54

26.04

42.76

70.16

104.1

115.1

Diameter(Metric)

Φ14

Φ16

Φ18

Φ20

Φ21

Φ25

Φ28

Φ30

Φ32

Φ35

Φ38

Φ40

Φ45

Φ50

d (Max)

14.8

16.8

18.9

20.9

21.9

25.9

28.9

30.9

32.9

35.9

38.9

40.9

45.9

50.9

d (Min)

14.5

16.5

18.5

20.5

21.5

25.5

28.5

30.5

32.5

35.5

38.5

40.5

45.5

50.5

d1

8.5

10.5

11.5

12.5

13.5

15.5

17.5

18.5

20.5

21.5

23.5

25.5

28.5

31.5

c (Max)

2.4

2.5

2.4

3.4

3.4

3.4

3.4

3.4

3.6

3.6

4.6

4.6

4.6

4.6

c (Min)

2

2

2

3

3

3

3

3

3

3

4

4

4

4

h

3

3

3.5

4

4

5

5.5

6

6

7

75

7.5

8.5

9.5

Double Shear  Min, kN:

144.7

171

222.5

280.6

298.2

438.5

542.6

631.4

684

859

1003

1068

1360

1685

Equivalent Norm:

GB

ISO

DIN

UNI

GB /T 879.1

ISO 8752

DIN EN ISO 8752

UNI 6873

Some of the above standards may be approximate equivalents; in case of disagreement, the original standard shall prevail.
