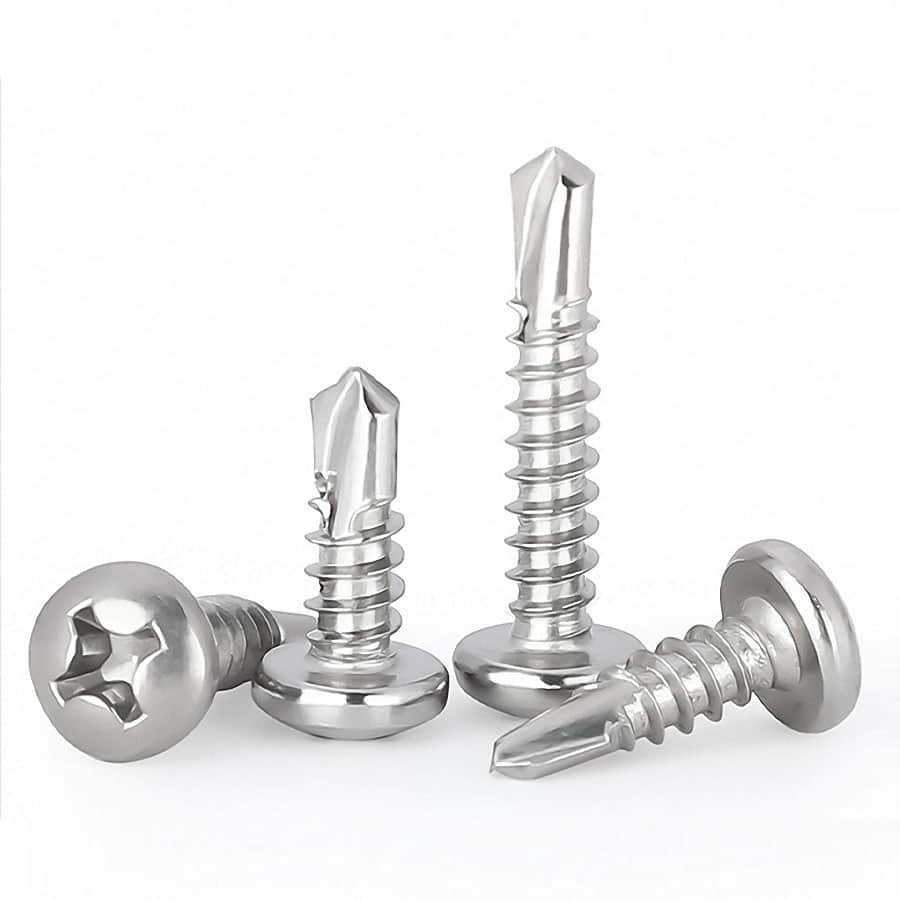

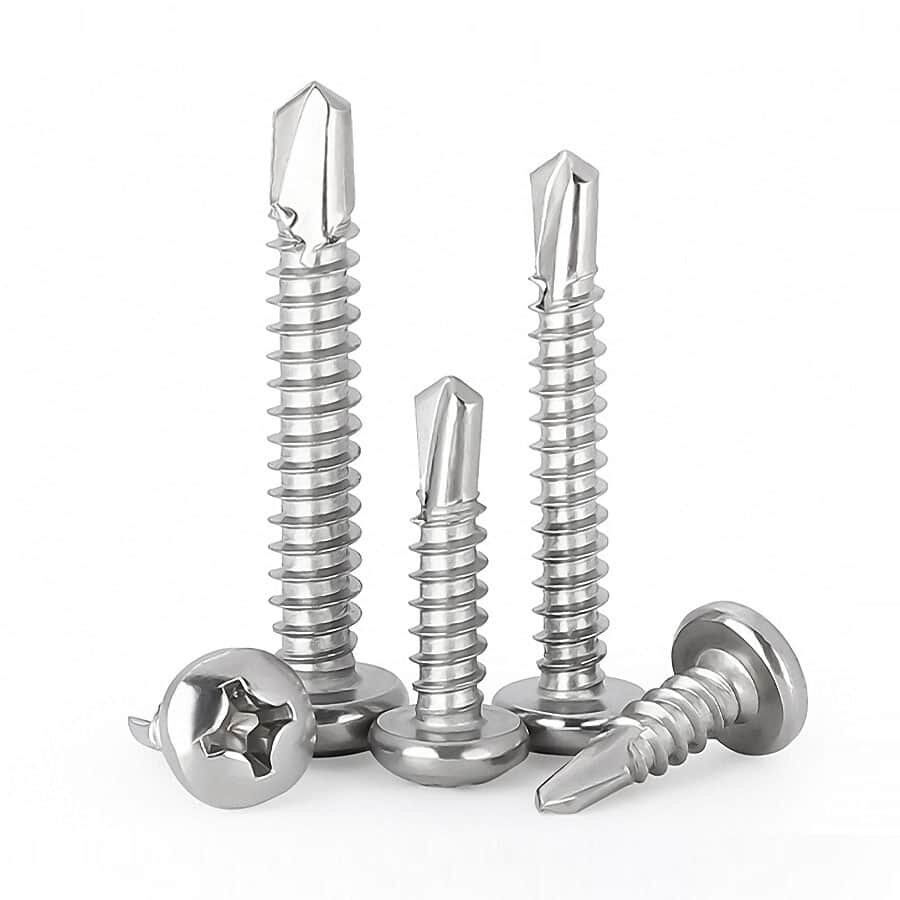

Self drilling Screws Phillips Pan Head DIN7504M Stainless Steel 316

SKU: BG0101007 Categories: Screws, Self drilling Screws Tags: Metal screws, Pan Head, Phillips, screw, Self-Drilling Screws, Stainless Steel

System of Measurement

Metric(MM)

Diameter

ST3.5
ST3.9
ST4.2
ST4.8
ST5.5
ST6.3

Length

10
13
16
19
25
32
35
38
40
45
50
55
60
65
70
75
80
90
100

Finish

Plain

Clear

Description：

Product Name:	Pan Head Self drilling Screws/Pan Head Sheet Metal Screws
Specification:	DIN7504M
Material Grade:	Stainless Steel 316
Measurement:	Metric(MM)
Diameter Range:	ST3.5, ST3.9, ST4.2, ST4.8, ST5.5, ST6.3
Length Range:	13mm, 16mm, 19mm, 22mm, 25mm, 32mm, 35mm, 38mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 90mm, 100mm,
Surface Finish:	Plain
Color:	Silvery
Place of Origin:	DongGuan, China
Quality Control:	100% inspection during production
Industry Focus:	Widely used for automotive, mechanics, car garage, workshop, power equipment
Packaging:	Plastic bags/cartons
Sample:	Availbale
Customized:	Availbale
Features:	Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316) Secure trailer, roofing and subfloor decking without pre-drilling Drill, Tap and Fasten Metal to Wood in one motion Common project applications: electronics, license plates, electrical boxes, switch plates, furniture

Drawing:

Data Sheet:

Thread Size	ST2.9	ST3.5	ST4.2	ST4.8	ST5.5	ST6.3
P	1.1	1.3	1.4	1.6	1.8	1.8
a(max)	1.1	1.3	1.4	1.6	1.8	1.8
dk(max)	5.6	7	8	9.5	11	12
dk(min)	5.3	6.64	7.64	9.14	10.57	11.57
k(max)	2.4	2.6	3.1	3.7	4	4.6
k(min)	2.15	2.35	2.8	3.4	3.7	4.3
r(min)	0.1	0.1	0.2	0.2	0.25	0.25
R	5.0	6.0	6.5	8.0	9.0	10.0
Socket No.	1	2	2	2	3	3
M1	3.0	3.9	4.4	4.9	6.4	6.9
M2	3.0	4.0	4.4	4.8	6.2	6.8
dp	2.3	2.8	3.6	4.1	4.8	5.8
Drilling range (thickness)	0.7~1.9	0.7~2.25	1.75~3	1.75~4.4	1.75~5.25	2~6

Equivalent Norm:

GB	ISO	DIN
GB /T 15856.1	ISO 15481	DIN EN ISO 15481
Some of the above standards may be approximate equivalents; in case of disagreement, the original standard shall prevail.
