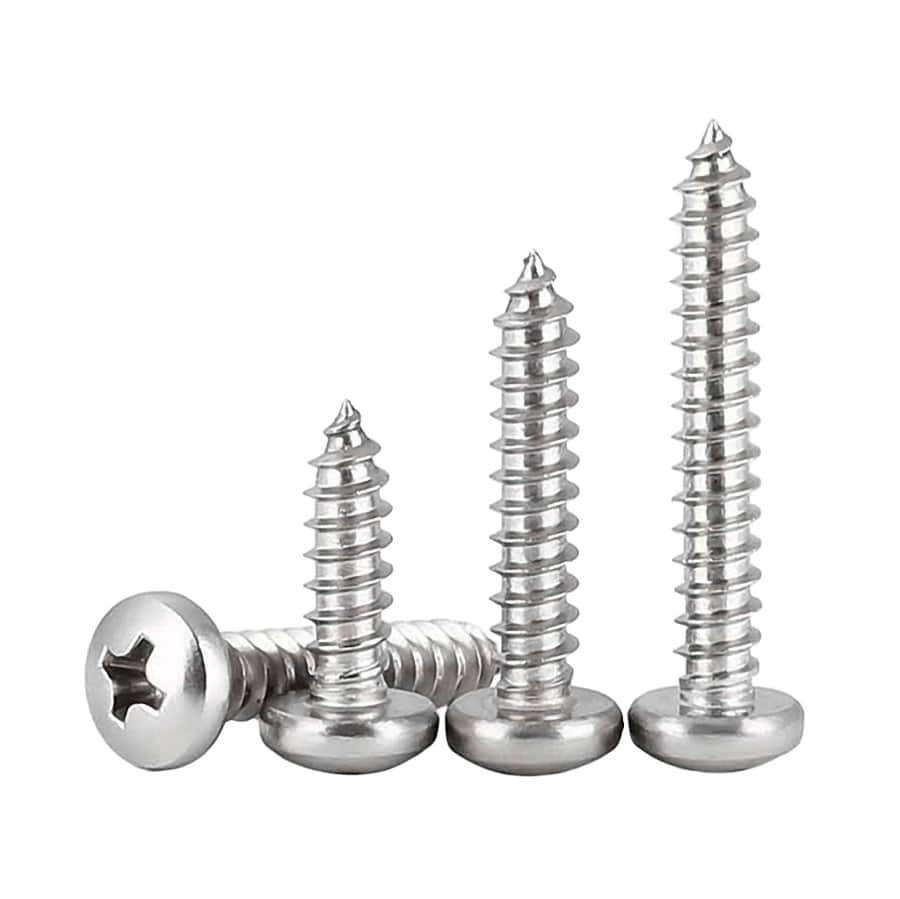

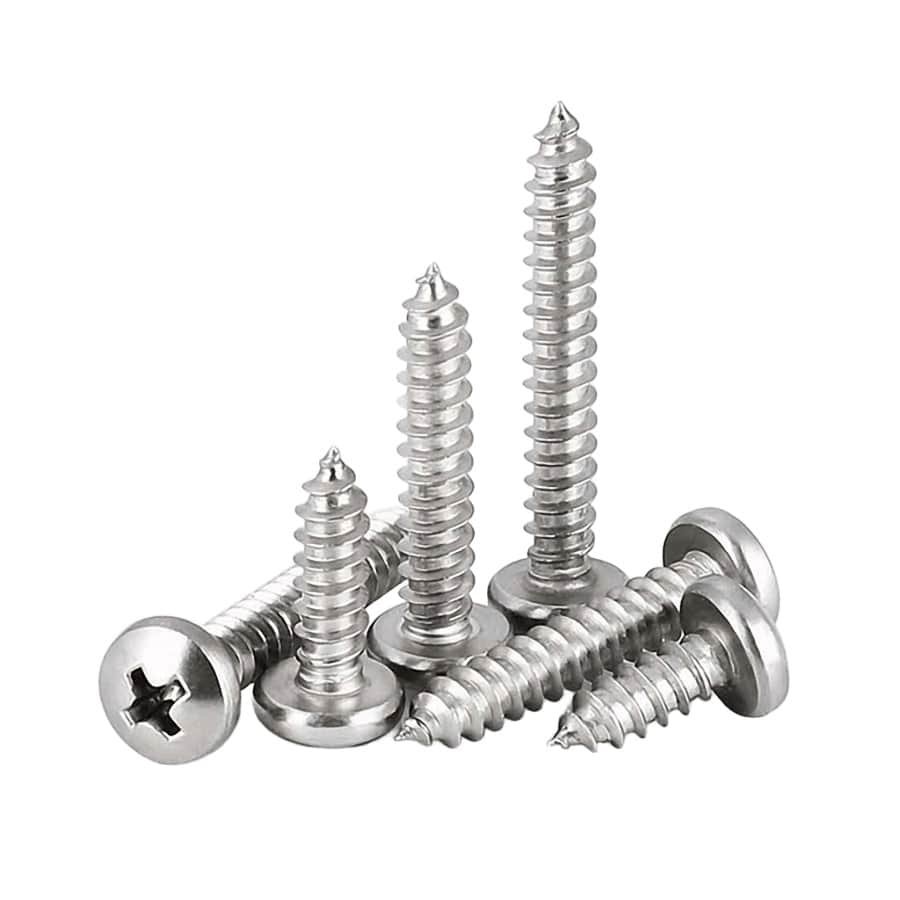

Self tapping Screws Phillips Pan Head DIN7981 Stainless Steel 304

SKU: BG0102006 Categories: Screws, Self tapping Screws Tags: Drywall Screws, Pan Head, Phillips, screw, Self-Tapping Screws, Stainless Steel, Wood Screws

System of Measurement

Metric(MM)

Diameter

ST2.2
ST2.9
ST3.5
ST3.9
ST4.2
ST4.8
ST5.5
ST6.3

Length

4.5
6.5
9.5
10
13
16
19
22
25
30
32
35
38
40
45
50
55
60
63
65
70
75
80
90
120

Finish

Plain

Clear

Description：

Product Name:	Pan Head Self tapping Screws/Pan Head Wood Screws
Specification:	DIN7981
Material Grade:	Stainless Steel 304
Measurement:	Metric(MM)
Diameter Range:	ST2.2, ST2.9, ST3.5, ST3.9, ST4.2, ST4.8, ST5.5, ST6.3
Length Range:	6.5mm, 9.5mm, 10mm, 13mm, 16mm, 19mm, 22mm, 25mm, 30mm, 32mm, 35mm, 38mm, 40mm, 45mm, 50mm, 55mm, 60mm, 63mm, 65mm, 70mm, 75mm, 80mm, 90mm
Surface Finish:	Plain
Color:	Silvery
Place of Origin:	DongGuan, China
Quality Control:	100% inspection during production
Industry Focus:	Widely used for automotive, mechanics, car garage, workshop, power equipment
Packaging:	Plastic bags/cartons
Sample:	Availbale
Customized:	Availbale
Features:	Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316) Secure trailer, roofing and subfloor decking without pre-drilling Drill, Tap and Fasten Metal to Wood in one motion Common project applications: electronics, license plates, electrical boxes, switch plates, furniture

Drawing:

Data Sheet:

Thread Size	ST2.2	ST2.9	ST3.5	ST3.9	ST4.2	ST4.8	ST5.5	ST6.3
P	0.8	1.1	1.3	1.3	1.4	1.6	1.8	1.8
a(max)	0.8	1.1	1.3	1.3	1.4	1.6	1.8	1.8
dk(max)	4.2	5.6	6.9	7.5	8.2	9.5	10.8	12.5
dk(min)	3.9	5.3	6.54	7.14	7.84	9.14	10.37	12.07
k(max)	1.8	2.2	2.6	2.8	3.05	3.55	3.95	4.55
k(min)	1.55	1.95	2.35	2.55	2.75	3.25	3.65	4.25
y-c(max)	2	2.6	3.2	3.5	3.7	4.3	5	6
y-f(max)	1.6	2.1	2.5	2.7	2.8	3.2	3.6	3.6
Socket No.	1	1	2	2	2	2	3	3
M1	2.6	3	4.2	4.4	4.6	5	6.5	7.1
M2	2.4	2.9	3.9	4.1	4.3	4.7	6.2	6.7

Equivalent Norm:

GB	ISO	DIN	UNI	NF
GB /T 845	ISO 7049	DIN EN ISO 7049	UNI 6954	NF E 25-658
Some of the above standards may be approximate equivalents; in case of disagreement, the original standard shall prevail.
