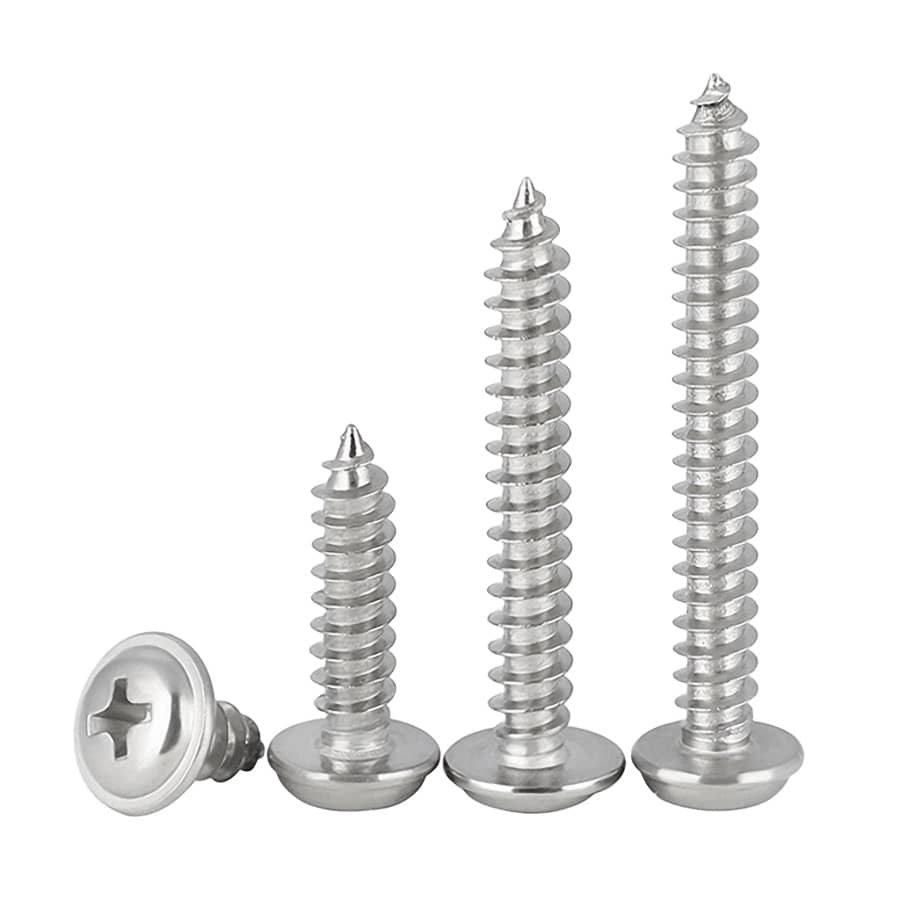

Self tapping Screws Phillips Truss Head DIN968 Stainless Steel 316-1

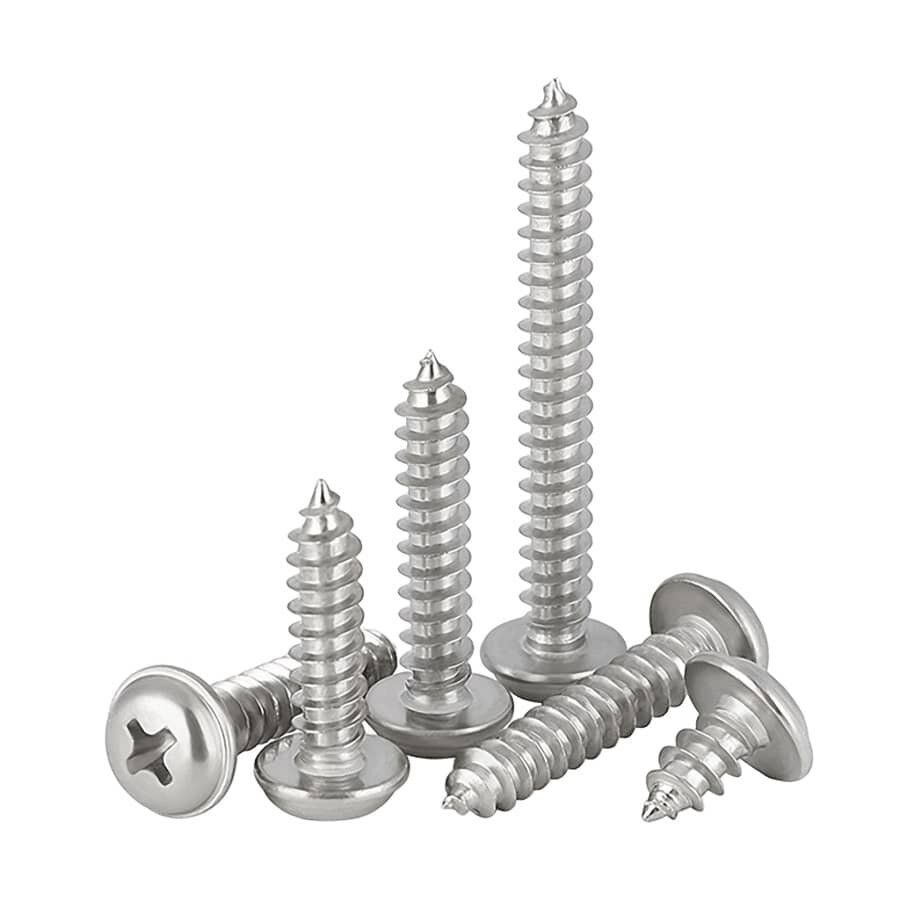

Self tapping Screws Phillips Truss Head DIN968 Stainless Steel 316-2

Self tapping Screws Phillips Truss Head DIN968 Stainless Steel 316

SKU: BG0102004 Categories: , Tags: , , , , , , , ,
Add to Quote

Description：

Product Name:

Truss Head Self tapping Screws/Truss Head Wood Screws

Specification:

DIN968

Material Grade:

Stainless Steel 316

Measurement:

Metric(MM)

Diameter Range:

ST1.4, ST1.7, ST2, ST2.2, ST2.6, ST2.9, ST3.5, ST3.9, ST4.2, ST4.8, ST5.5,  ST6.3

Length Range:

2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 6mm, 6.5mm, 7mm, 8mm, 9.5mm, 10mm, 12mm, 13mm, 14mm, 16mm, 19mm, 20mm, 22mm, 25mm, 30mm, 32mm, 35mm, 38mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm, 95mm, 100mm,

Surface Finish:

Plain

Color:

Silvery

Place of Origin:

DongGuan, China

Quality Control:

100% inspection during production

Industry Focus:

 Widely used for automotive, mechanics, car garage, workshop, power equipment

Packaging:

Plastic bags/cartons

Sample:

Availbale

Customized:

Availbale

Features:

  • Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness.

  • Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316)

  • Secure trailer, roofing and subfloor decking without pre-drilling

  • Drill, Tap and Fasten Metal to Wood in one motion

  • Common project applications: electronics, license plates, electrical boxes, switch plates, furniture

Drawing:

Self tapping Screws Phillips Truss Head DIN968 Drawing

Data Sheet:

Thread Size

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

P

1.1

1.3

1.4

1.6

1.8

1.8

a(max)

1.1

1.3

1.4

1.6

1.8

1.8

dk(max)

7.5

9

10

11.5

13

14.5

dk(min)

6.92

8.42

9.42

10.8

12.3

13.8

k(max)

2.35

2.6

3.05

3.55

3.8

4.55

k(min)

2.1

2.35

2.75

3.25

3.5

4.25

c(max)

0.8

0.9

1.1

1.35

1.6

1.8

c(min)

0.6

0.7

0.9

1.05

1.2

1.4

r

0.1

0.1

0.2

0.2

0.25

0.25

R

3.8

4.6

5.8

6.6

7.8

8.2

Socket No.

1

2

2

2

3

3

M1-H type

3

4.2

4.6

5

6.5

7.1

deep-H type

(min)

1.35

1.4

1.8

2.26

2.49

3

deep-H type

(max)

1.8

2.03

2.46

2.87

3.15

3.66

M2-Z type

2.9

3.9

4.3

4.7

6.2

6.7

deep-Z type

(min)

1.58

1.47

1.88

2.28

2.51

3.02

deep-Z type

(max)

1.83

1.93

2.34

2.74

2.97

3.48

y-C type(refer)

2.6

3.2

3.7

4.3

5

6

y-F type(refer)

2.1

2.5

2.8

3.2

3.6

3.6

y-R type(refer)

/

2.7

3.2

3.6

4.3

5.0
